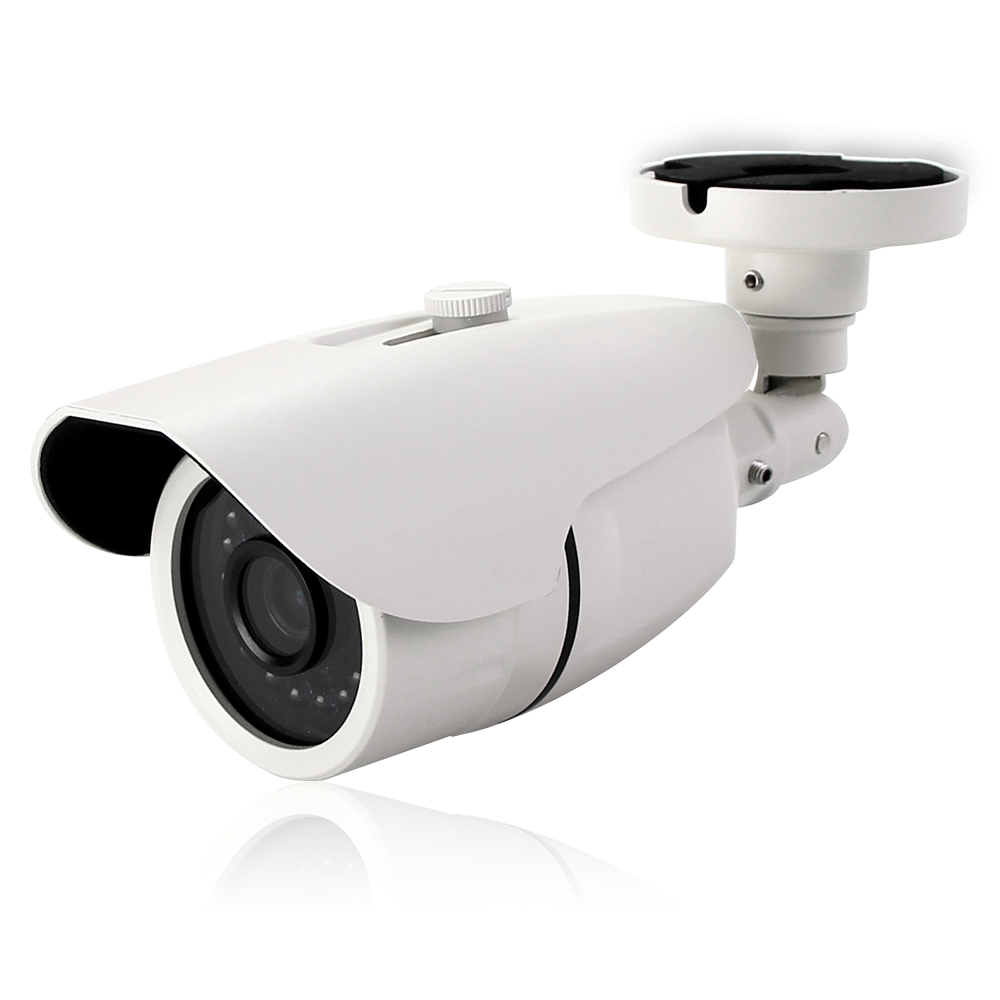

AVN305 - 1,3 Megapiksel - POE, IP66 (Fast linse 3.8mm)

Pris: 1 430,00 kr
Art. nr: 107993
På lager: Utgått produkt. Gå til erstattende produkt

Avsluttet produkt, erstattet av AVM2201 - Mini bullet - 2 Megapiksel, PoE (Fast 3.8mm)

AVM305A er et utendørskamera med 1,3 Megapiksel. Kamera har IR-lys som når 20 meter i mørker. Dette er ett POE-kamera som gjører det mulig å ha strømforsyning til kamera gjennom samme nettverkskabel som lyd og bilde går igjennom.

Du kan se på kamera direkte på din PC eller i din mobil/surfebrett. Kamera har ON-VIF standard.

FEATURES

POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce

installation costs

ONVIF ( ) standard supported to simplify system integration

IR LED built-in for night surveillance up to 20 meters

IP66 weather-proof case for protection against dust and water, suitable for both indoor

& outdoor use

Remote Surveillance

Fully compatible with iOS and Android devices, and Internet Explorer on

Windows operating system

SPECIFICATION

LAN Port YES

LAN Speed 10/100 Based-T Ethernet

Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP,

RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP

ONVIF Compatible YES (Profile S)

Number of Online Users 10

Security

(1) Multiple user access levels with password

(2) IP address filtering

(3) Digest authentication

Remote Access

(1) Internet Explorer on Windows operating system

(2) 16CH Video Viewer on Windows & MAC operating system

(3) EagleEyes on iPhone, iPad & Android mobile devices

Video

Network Compression H.264 / MPEG4 / MJPEG

Video Resolution 1280 x 1024 / 1280 x 720 / 640 x 480 / 320 x 240

Frame Rate 30fps

Multiple Video Streamaing 4 (H.264, MJPEG, MPEG4)

General

Image Sensor 1/ 3” SONY CMOS image sensor

Min Illumination 1 Lux / F1.5, 0 Lux (LED ON)

Shutter Speed 1/2 to 1/10,000 sec

S/N Ratio More than 48dB (AGC off)

Lens f3.8mm / F1.5

Viewing Angle 65.4° (Horizontal) / 49.9° (Vertical) / 80.4° (Diagonal)

IR LED 14 Units

IR Effective Distance Up to 20 meters

IR Shift YES

Smart Light Control YES

White Balance ATW

AGC Auto

IRIS Mode AES

POE YES (IEEE 802.3af)

IP Rating IP66

Operating Temperature -20℃ ~ 40℃

Power Source (±10%) 12V / 1A

Current consumption (±10%) 350mA

Power Consumption (±10%) 5.5W (PoE); 5.5W (PoN); 4.7W (DC Adapter)

Others

Mobile Surveillance iOS & Android mobile devices

Event Notification FTP / Email / SMS

Digital Pan / Tilt / Zoom YES

Motion Detection YES

RTC (real-time clock) YES

Minimum Web Browsing Requirements

‧Intel core i3 or higher, or equivalent AMD

‧2GB RAM

‧AGP graphics card, Direct Draw, 32MB RAM

‧Windows 8, 7, Vista & XP, DirectX 9.0 or later

‧Internet Explorer 7.x or later

*The specifications are subject to change without notice.
