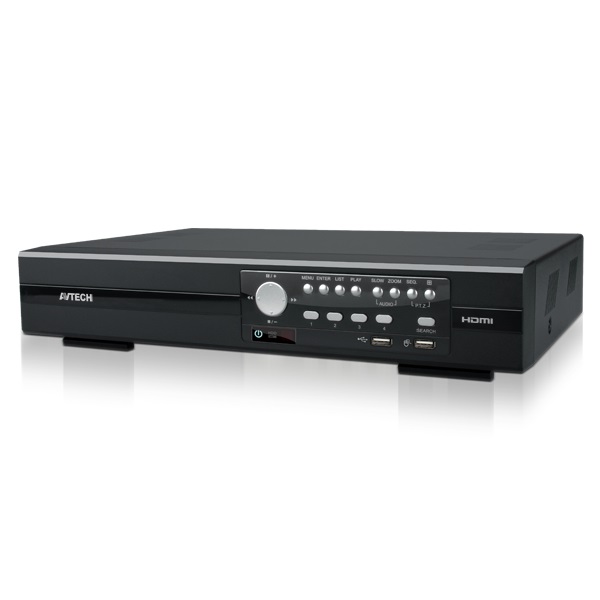

AVT204 - DVR, 4 kanaler, push-video & status (FULL-HD)

Pris: 2 901,11 kr
Art. nr: 107074
På lager: Utgått produkt. Gå til erstattende produkt

AVT204 - 4-kanals HD-CCTV DVR (digital video recorder) som tar opp i 1080p/FULL HD.

AVT204 har alle funksjonene som de gamle analoge lagringsenhetene har, men har også push-video, push status, IVA (Intelligent Video Analysis) og eazy-network. AVTECHS nye analoge overvåkingskameraer og DVRer er designet for de som ønsker å oppgradere sine kamerasystem, men beholde sin gamle koaksiale kabling. Har du et gammelt 300-700 TVL system kan du nå bruke samme kabling men med våre nye kameraer og DVR få 2 megapixels oppløsning.

Raskere responstid enn IP-basert system

En annen grunn til å velge HD CCTV systemet er responstiden som er lavere enn et IP-basert system. En IP-kamera har en responstid på 0,5-1 sekunder mens et analogt kamera bare 0,2-0,5 sekunder. Det betyr at fabrikker, produksjoner og lignende der noen overvåker "live" bør velge en HD-CCTV/ITV-system.

Harddisk må bestilles separat.

Video

Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Input 4 channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Output BNC YES
VGA YES
HDMI YES

Record & Backup

Maximum Recording Rate 1080P 1920 x 1080 pixels with 60 IPS
720P 1080 x 720 pixels with 120 IPS
QHD 960x540 pixels with 120 IPS
Frame 704×480 pixels with 120 IPS <NTSC> / 704×576 pixels with 100 IPS <PAL>
Field 704x240 pixels with 120 IPS <NTSC> / 704×288 pixels with 100 IPS <PAL>
CIF 352×240 pixels with 120 IPS <NTSC> / 352×288 pixels with 100 IPS <PAL>
Recording Mode Manual / Timer / Motion / Alarm / Remote
Pre-alarm Recording YES
Playback Channel 4CH
Quick Search Time / Motion / Alarm search mode
Backup Device USB 2.0 flash drive / Network

Audio

Audio Input 1 audio input
Audio Output 1 audio output (Mono)

General

Hard Disk Storage** Up to 2 SATA HDDs
SATA Interface YES
eSATA Interface YES (For external disk array connection)
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push Video / Push Status / FTP / E-Mail
Picture Zoom 2X digital zoom
PTZ Control YES
Alarm I/O 4 inputs (4 inputs for Push Video), 1 output
RS485 YES
IR Remote Control YES (IR receiver built-in)
Key Lock (Password Protection) YES
User Level 4 user levels for different access privilege
Video Loss Detection YES
Camera Title Supports up to 12 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) DC12V / 3A
Operating Temperature 10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)*** 375(W) × 61(H) × 281(D)

Network

Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP and DDNS

Remote Surveillance from PC

Compatible Operating System Windows & MAC
Compatible Program Web Browser: Internet Explorer, Mozilla Firefox, Google Chrome & Safari
Video Viewer: 16CH central management software for Windows and MAC
operating systems
QuickTime: For both Windows and MAC operating systems
Max. online users 10
Web Transmitting Compression Format H.264
Network Live Audio YES
Remote Independent Operation YES
Remote Event Download & Playback YES

Mobile Surveillance

App EagleEyes
Compatible Devices iOS & Android devices
Push Video YES
Push Status YES

Others

EaZy Networking YES
IVA YES
DCCS Support YES
AVTECH Free DDNS service YES
Multiplex Operation Live display / record / playback / backup / network operations
System Recovery System auto recovery after power failure
Optional Peripherals HDMI Matrix (HDM02)
