AVZ416 16 Kanals Full HD DVR - 16 Analoge kameraer + IP

Pris: 6 349,20 kr
Art. nr: 107081

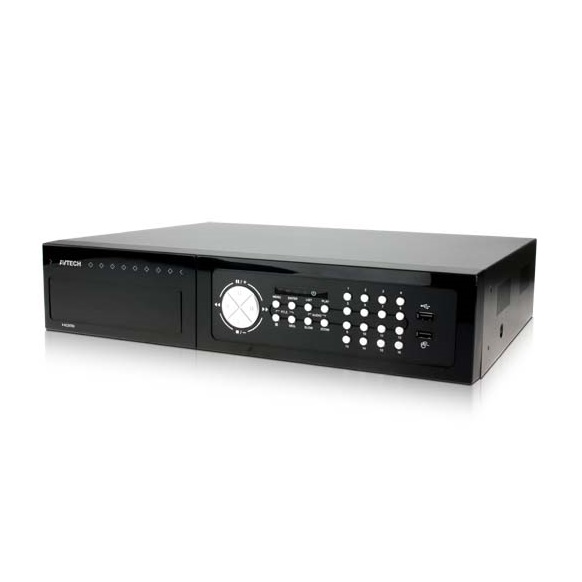

AVZ416 - 16 Kanals Pentabrid DVR (IP, TVI, 960H, AHD, CVI)

AVZ416 er en smart "pentabrid" lagringsenhet som kan ha en bred range analoge kameraer og IP kameraer. Lagringsenheten kan brukes med CVI, AHD, 960H, TVI og IP kameraer. Lagringsenheten har 1 VGA og 2 HDMI utganger for tilkoppling av skjermer. Formatet som brukes er H.264. Enheten har har push-status som kan varsle ved video-loss, feil på harddisk og lignende og push video som kan varsle med videomeldning til mobilen.

Lagringsenheten har også mulighet å koples til skytjenesten Eazy network som er avtech serverløsning som gjør så du slipper åpne porter og lignende.

Raskere responstid enn IP-basert system

En annen grunn til å velge HD CCTV systemet er responstiden som er lavere enn et IP-basert system. En IP-kamera har en responstid på 0,5-1 sekunder mens et analogt kamera bare 0,2-0,5 sekunder. Det betyr at fabrikker, produksjoner og lignende der noen overvåker "live" bør velge en HD-CCTV/ITV-system.

EagleEyes

Med Avtechs App EagleEyes kan du enkelt vervåke/styre/aktivere innganger & utganger direkte på mobilen. Appen finns tilgjengelig til alle typer av mobiler (Iphone/Android/Blackberry)

VideoViewer

Med Avtechs PC/MAC program Videoviewer kan du enkelt overvåke/spille inn/spille opp/styre utganger & innganger og mye mer!

Harddisk må bestilles separat.

Functions:

Free P2P cloud EaZy network.

- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
- The “Buddy” feature to share the device access permission to other people.
- Device login / out notifications reported.

Push Video & Push Status - Event notification with eagleeyes app.

- Push Video to send instant notifications for an alarm event when an alarm device is connected to the DVR.
- Push Status to send instant notifications for system events, such as video loss or HDD data removal.

External disk for more video storage.

- eSATA interface built-in to connect a disk array for more video storage.

Pentabrid video input.

- 16 channels of IP / TVI / CVI / Analog HD / 960H video input, within which IP channels are up to 12 channels.
- All channels at 1080P real-time recording.
- Up to 5MP recording for IP cameras

Spot monitor.

- In addition to the main display via the HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.

Intelligent video analysis.

- The Smart TVI DVR supports IVS (Intelligent Video System) to set a virtual detection line for people counting, virtual fence, and one-way pass.

Data:

Video

Video System: NTSC / PAL (auto detection)
Video Compression Format: H.264
Video Signal: IP / TVI / CVI / Analog HD / 960H
Video Input: 16 quadbrid channels (IP / TVI / Analog HD / 960H), within which IP channels are up to 12 channels
Video Input Interface:
- Analog Mode = Composite video signal 1 Vp-p 75Ω BNC
- IP Mode: Ethernet, 10/100 Base-T
Video Output: BNC, VGA (1080P), HDMI - HDMI-1: Up to 3840 x 2160 (4K2K) / HDMI-2: Up to 1920 x 1080 (1080P)
Video Resolution:
Analog Mode: 1080P / 720P / QHD / 960H / Frame / Field / CIF
IP Mode: 2592 x 1944** / 2048 x 1536** / 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240

Record & Backup

Max. Recording Rate
- Analog Mode: Up to 480 IPS @ 1920 x 1080 (16 channels)
- IP Mode: UP to 360 IPS @ 1920 x 1080 (12 channels)
Recording Mode: Manual / Timer / Motion / Alarm / Remote.
Pre-alarm Recording: YES
Playback Channel: 16CH
Quick Search: Time / Motion / Alarm search mode
Backup Device: USB 2.0 drive / Network
Regular Backup: YES (USB hard drive or FTP)

Audio

Audio Input: 8 audio inputs
Audio Output: 2 Audio output (Mono)

General

Hard Disk Storage: 10TB SATA HDD x 3
SATA Interface: YES
eSATA Interface: YES (For external disk array connection)
Image Quality Setting: SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control: YES
Motion Detection Area: 16 × 12 grids per channel
Motion Detection Sensitivity: 3 adjustable parameters for accurate detection
Event Notification: Push Video/ Push Status / FTP / E-Mail
Picture Zoom: 2X digital zoom
PTZ Control: YES
Alarm I/O: 8 inputs, 1 output
RS485 YES
IR Remote Control: YES (IR receiver built-in)
Key Lock (Password Protection): YES
User Level: 4 user levels for different access privilege
Video Loss Detection: YES
Camera Title: Supports up to 25 letters
Video Adjustable: Hue / Saturation / Contrast / Brightness
Date Display Format: YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving: YES

General

Power Source (±10%) 19V/3.42A
Operating Temperature: 10ºC ~ 40ºC (50ºF ~104ºF)
Operating Humidity: 10% ~ 85%
Dimensions (mm)***: 432(W) × 90(H) × 326(D)
Net Weight (kg): 4kg

Network

Ethernet: 1000 Base-T. Supports remote control and live view via Ethernet
Network Protocol: TCP/IP, PPPOE, DHCP and DDNS

Remote Surveillance from PC

Compatible Operating System: Windows & MAC
Compatible Program: Web Browser: Internet Explorer, Google Chrome & Safari
CMS Lite:: 32CH central management software for Windows OS
QuickTime: For both Windows and MAC operating systems
Max. online users: 20
Web Transmitting Compression Format: H.264
Network Live Audio: YES
Remote Independent Operation: YES
Remote Event Download & Playback: YES
Mobile Surveillance: App EagleEyes
Compatible Devices: iOS & Android devices
Push Video: YES (16CH)
Push Status: YES

Others

EaZy Networking: YES
IVA: YES (4 channels in analog mode)
DCCS Support: YES
AVTECH Free DDNS service: YES
Privacy Mask: YES
Multiplex Operation: Live display / record / playback / backup / network operations
System Recovery: System auto recovery after power failure
Optional Peripherals: Disk Array (AVX997 / AVX992) / HDMI Matrix (HDM02) / USB Joystick (AVX102)
