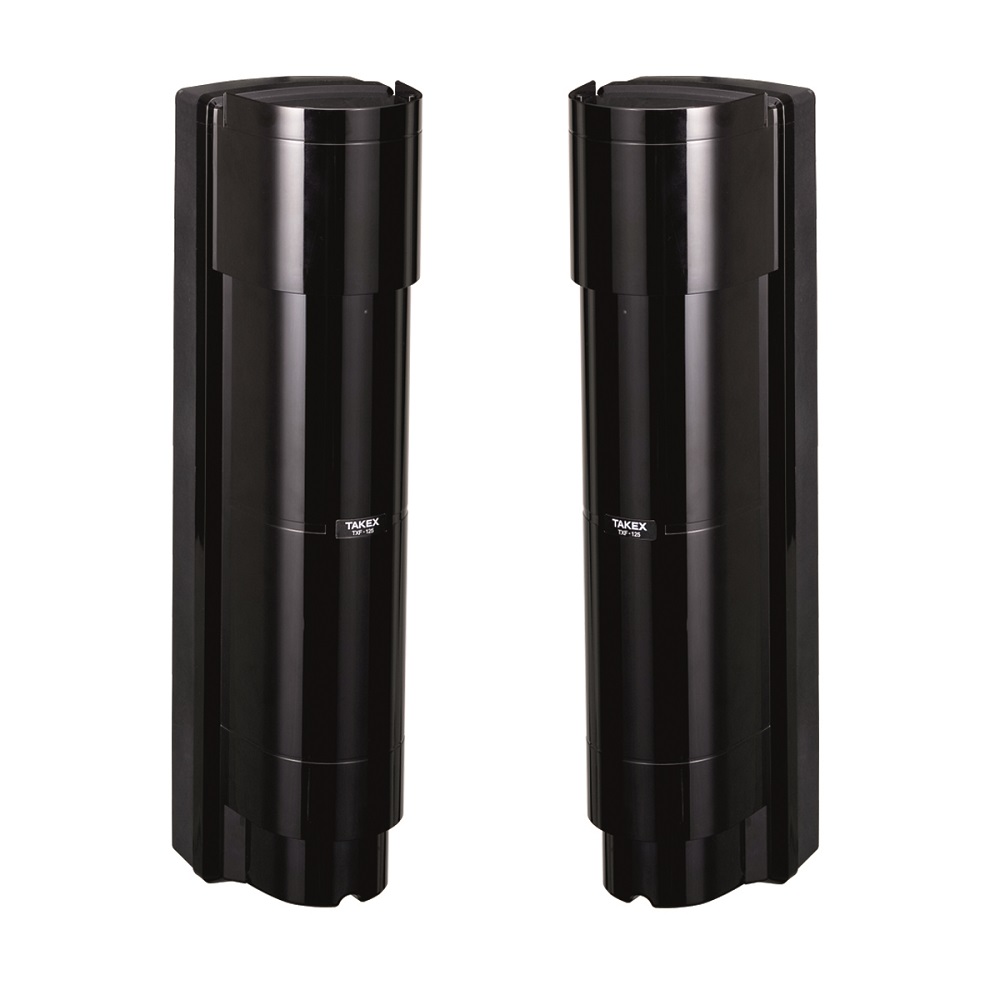

TXF-125E - Batteridriven Linjedetektor (5 års batteri)

Pris: 13 227,50 kr
Art. nr: 11236

TXF-125E - Batteridriven Linjedetektor (5 års batteri)

TXF-125E - Batteridrevet linjedetektor med 4 synkroniserte stråler. Reduser installasjonskostnaden & kostnader ved kabeltrekk. Ideell for midlertidige løsnninger der du raskt må beskytte og overvåke eksempelvis en arbeidsplass eller lignende. Enheten kan også brukes som en fast installasjon da enheten har en levetid på fem år. TXF-125E har en rekkevidde på opp til 100 meter.

Bestillingsvare. 1-2 ukers levering.

Features:

- 4 x Synchronised high power beams
- 4 Selectable operation ranges 25/50/75/100m
- 4 Selectable beam channels to prevent crosstalk
- Up to 5 year battery life using 2 x LS 33600 (3.6V 17Ah) batteries per unit
- Increased beam separation minimises nuisance alarms
- Vivid internal colour aids beam alignment procedure
- ±90° horizontal ±20° vertical adjustable sensor heads
- Environmental monitoring circuit
- IP65 housing

Data:

Model: TXF-125E
Detection system: Near infrared pulsed beam interruption system (TR-RE 4 beam simultaneous interruption)
Infrared beam: Single modulation pulsed beam by LED (near infrared beam light-emitting diode)
Protection distance: Outdoor 330ft (100m) or less
Beam power setting: 330ft (100m) / 245ft (75m) / 165ft (50m) / 82ft (25m)
Max. arrival distance: 10 times (1000m)
Response time: 0.05 sec, 0.10 sec, 0.25 sec, 0.5 sec
Battery: SAFT: LS 33600 (or equivalent) 3.6V, 17Ah
Battery life:

- Transmitter = Up to 5 years* (2 batteries)
- Receiver = Up to 5 years* (2 batteries) *Approximate, not guaranteed

Beam adjustment: Horizontal: ±90°, Vertical: ±20°
Alarm LED: Red LED (Receiver) ON: when an alarm is initiated
Attenuation LED Red LED (Receiver) ON: when an alarm is initiated
Ambient temperature range: -10°C to +50°C (14°F to 122°F)

Functions:

- Modulated beam frequency selection
- Tone indicator
- Repeat output
- Monitor jack
- Response time adjustment
- Upper/Lower beam switch
- Low battery indication
- Wireless alignment checker connecting function
- Battery saving function
- Battery sharing

IP rating: IP65
Mounting positions: Outdoor, Indoor

Weight:
- Transmitter: 1.5kg (without batteries),
- Receiver: 1.5kg (without batteries)

Appearance Cover: PC resin (Wine Red), Base: ASA resin (Black)
