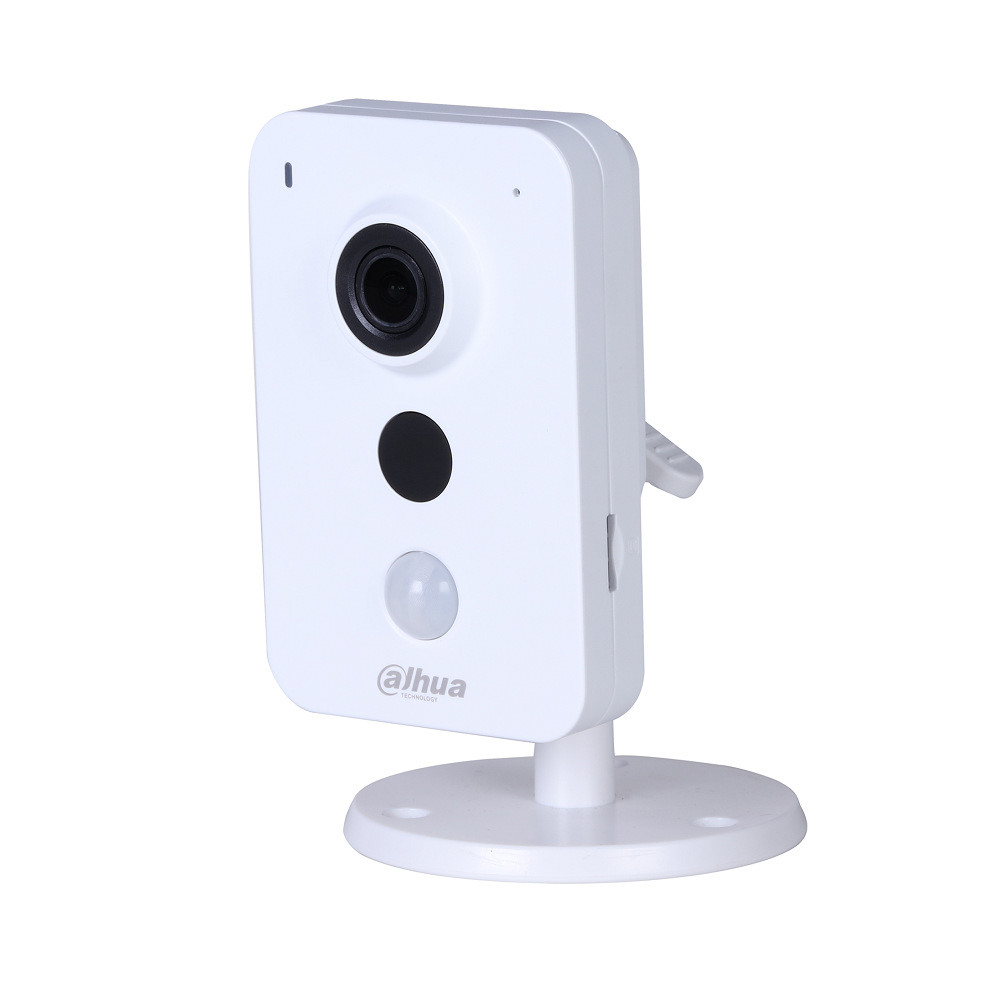

IPC-K15P - Dahua - Kamera til Holars 384 (WIFI & LAN)

Pris: 1 625,00 kr
Delbetal fra 70 kr/måned
Klarna Les mer
Art. nr: 108500

IPC-K15P - Dahua - Kamera til Holars 384 (WIFI & LAN)

Kamera fra Dahua med P2P tjeneste som brukes med våre alarmsentraler Holars 364 og Holars 384. NB! Enheten kobles via LAN kabel eller via WIFI til en lokal router og ikke til sentralen. Siden leses kameran inn i Eldes egne app som gjør att den går via deres P2P server. Du knytter kamera som en zone til din alarmpanel.

Data:

IPC-K15

1.3MP K Series Wi-Fi Network Camera

- 1/3” 1.3Megapixel progressive CMOS
- H.264& MJPEG dual-stream encoding
- 25/30fps@1.3M (1280×960)
- 92° horizontal view angle
- IR Diatance 10m
- Easy4ip cloud support
- Wi-Fi/Lan support
- Micro SD card slot, up to 128GB
- Alarm in/out,PIR
- DC12V

Camera

Image Sensor: 1/3” 1.3Megapixel progressive CMOS
Effective Pixels 1280(H) x960(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.5Lux/F2.2(Color), 0Lux/F2.2(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 1

Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm
Max. Aperture F2.2
Angle of View H:92°;V:66°
Focus Control Fixed
Close Focus Distance N/A

PTZ Pan/Tilt Range: Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°

Compression: H.264/H.264B/H.264H/MJPEG
Streaming Capability 2 Streams
Resolution 1.3M(1280×960)/720P(1280×720)/
VGA(640 ×480)/QVGA(320×240)
Frame Rate1.3M(1~25/30fps)VGA/QVGA(1~25/30fps)

Bit Rate Control CBR/VBR
Bit Rate H264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio Compression G.711A;G.711Mu;AAC

Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n),50m(open field)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;
Bonjour;Multicast;ICMP;IGMP;
InteroperabilityONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording,Micro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Lechange
Smart Phone iOS, Android
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Video Interface N/A
Audio Interface Built-in Mic & Speaker
RS485 N/A
Alarm 1/1,PIR
Power Supply DC12V
Power Consumption <4.5W

Operating Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Strorage Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Ingress Protection N/A

Vandal Resistance N/A
Casing Plastic
Dimensions Φ78.5mm×127.8mm(3.09'’ x5.03’’)
Net Weight0.31Kg (0.68lb)
Gross Weight0.45Kg (0.99lb)

IPC-K15P - Dahua - Kamera til Holars 384 (WIFI & LAN)

Kamera fra Dahua med P2P tjeneste som brukes med våre alarmsentraler Holars 364 og Holars 384. NB! Enheten kobles via LAN kabel eller via WIFI til en lokal router og ikke til sentralen. Siden leses kameran inn i Eldes egne app som gjør att den går via deres P2P server. Du knytter kamera som en zone til din alarmpanel.

Data:

IPC-K15

1.3MP K Series Wi-Fi Network Camera

- 1/3” 1.3Megapixel progressive CMOS
- H.264& MJPEG dual-stream encoding
- 25/30fps@1.3M (1280×960)
- 92° horizontal view angle
- IR Diatance 10m
- Easy4ip cloud support
- Wi-Fi/Lan support
- Micro SD card slot, up to 128GB
- Alarm in/out,PIR
- DC12V

Camera

Image Sensor: 1/3” 1.3Megapixel progressive CMOS
Effective Pixels 1280(H) x960(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.5Lux/F2.2(Color), 0Lux/F2.2(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 1

Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm
Max. Aperture F2.2
Angle of View H:92°;V:66°
Focus Control Fixed
Close Focus Distance N/A

PTZ Pan/Tilt Range: Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°

Compression: H.264/H.264B/H.264H/MJPEG
Streaming Capability 2 Streams
Resolution 1.3M(1280×960)/720P(1280×720)/
VGA(640 ×480)/QVGA(320×240)
Frame Rate1.3M(1~25/30fps)VGA/QVGA(1~25/30fps)

Bit Rate Control CBR/VBR
Bit Rate H264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio Compression G.711A;G.711Mu;AAC

Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n),50m(open field)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;
Bonjour;Multicast;ICMP;IGMP;
InteroperabilityONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording,Micro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Lechange
Smart Phone iOS, Android
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Video Interface N/A
Audio Interface Built-in Mic & Speaker
RS485 N/A
Alarm 1/1,PIR
Power Supply DC12V
Power Consumption <4.5W

Operating Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Strorage Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Ingress Protection N/A

Vandal Resistance N/A
Casing Plastic
Dimensions Φ78.5mm×127.8mm(3.09'’ x5.03’’)
Net Weight0.31Kg (0.68lb)
Gross Weight0.45Kg (0.99lb)
