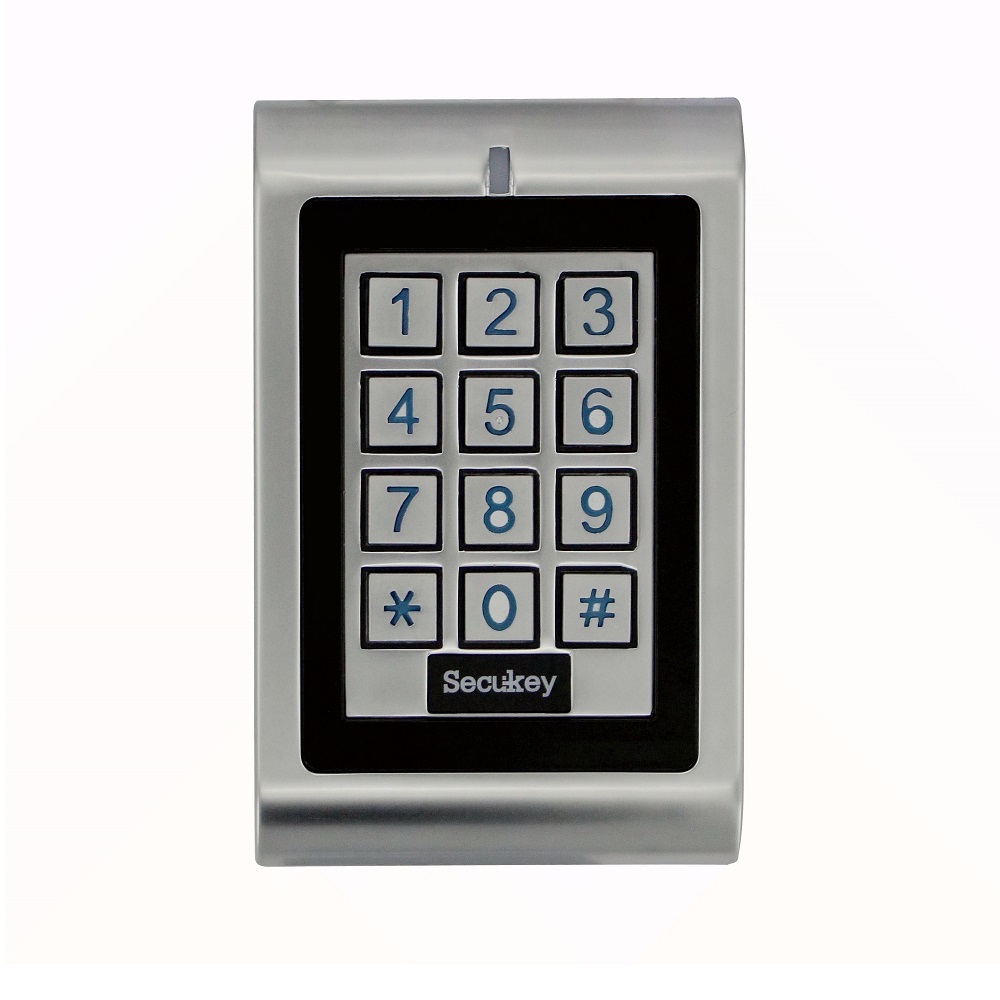

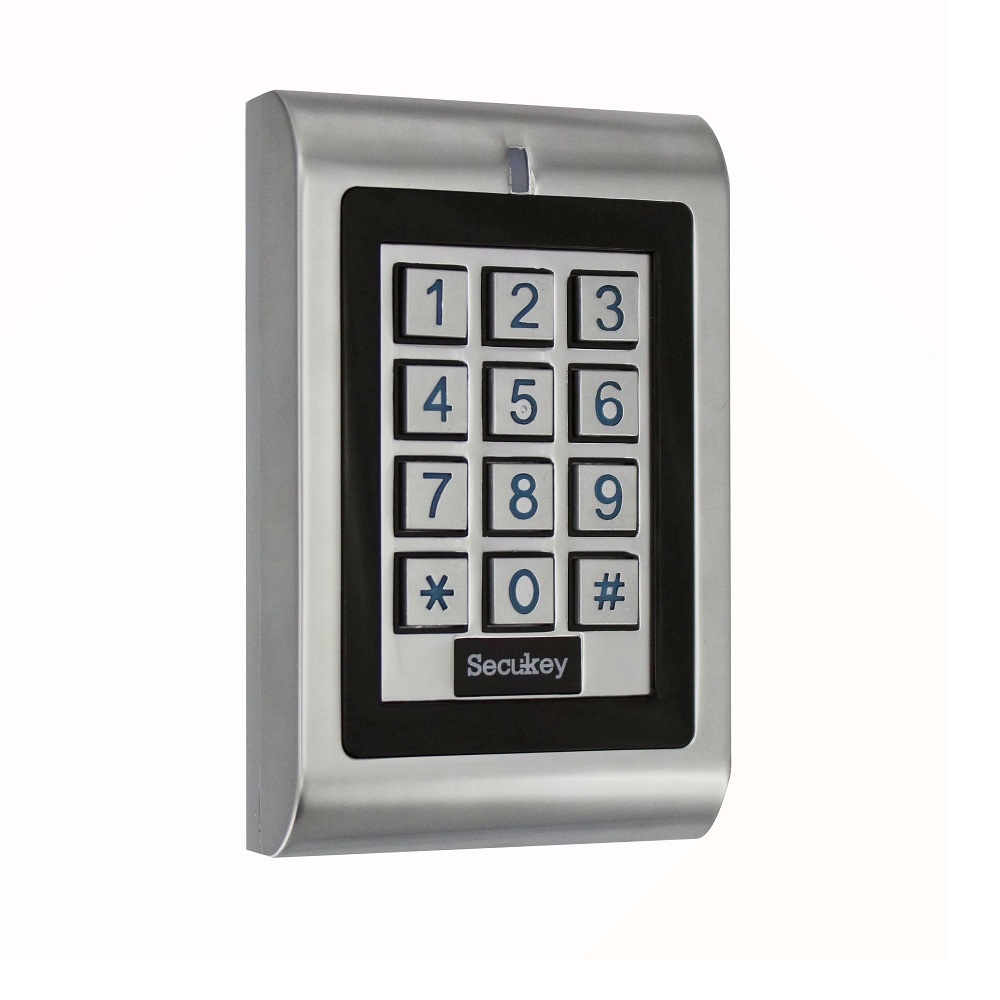

H-Kod 12/24 - Kodelås / Proxy 12-28 VAC/DC, 2 rele

Pris: 1 519,38 kr
Art. nr: 08564

H-Kod 12/24 - Kodelås 12-28 VAC/DC, To releutganger 1100 brukere.

H-Kod 12/24 er et kodelås som kan brukes innendørs og utendørs da den er IP66 klasset. Enheten har opplyste knapper og en status LED. Kodelåset har 2 releutganger og tamperalarm. Har også en innebygget EM (125KHz) kortleser.

Features:

- Waterproof(IP66)
- Vandal resistant enclosure
- Backlit keypad
- Multi-color LED status display
- Two programmable relay output
- 1100 Users (Card/PIN/ Card+PIN)
- Card block enrollment
- Integrated alarm & buzzer output
- Low power consumption (55mA)
- Anti-tamper alarm
- Toggle mode to hold door or gate open
- Relay 2 supports external door bell
- 12-28V AC/DC power input

Specifications:

User Capacity: Zone 1: 1000 Zone 2: 100
Operating Voltage: 12-28V AC/DC
Idle Current: 55mA
Active Current: 80mA
Proximity Card Reader: EM (125KHz Industry Standard Proximity Card)
Wiring Connections: Electric Lock, Exit Button, DOTL, External Alarm, Door Bell
Relay: Two (NO, NC, COM)
Adjustable Relay Output Time: 0-99 Seconds (5 seconds default)
Adjustable Alarm Output Time: 1-3 minutes (1 minute default)
Lock Output Load: 3 Amp Maximum
Alarm Output Load: 3 Amp Maximum
Environment: Meets IP66
Operating Temperature: -40°C ~60°C, or -40°F ~ 140°F
Operating Humidity: 10% ~ 90% Non-Condensing
Surface Finish: Zinc-Alloy Enclosure (Powder Coat)
Dimensions: L120xW76xH25 (mm) (SK1)
Unit Weight: 600G
