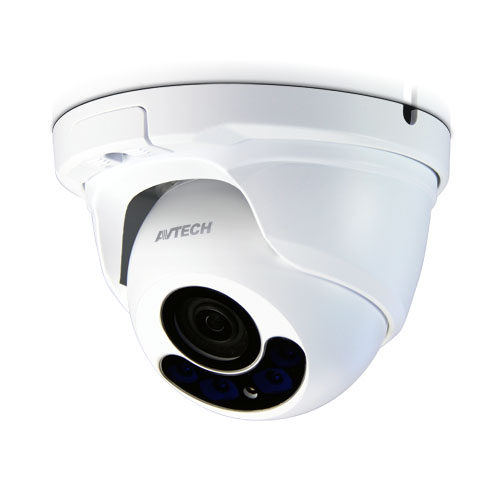

(DEMO) DGM2543 - 2 megapixel - 2.8 - 8mm linse.

Pris: 1 787,50 kr
Art. nr: 00205
På lager: Utgått produkt.
(DEMO) DGM2543 - 2 megapixel - 2.8 - 8mm linse.
Demokamera som har stått på test hos oss. Bør oppgraderes før installasjon. .
l Equipped with a motorized vari-focal lensbof f2.8 ~ 8.0 mm, focal length and focus adjustment could be made remotely
l Free P2P Cloud EaZy Networking
-- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
-- The Buddy feature to share the device access permission to other people.
-- Device login / out notifications reported.
l ONVIF ( ) standard supported to simplify system integration
l POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
l Line in / out jacks available for audio transmission
l IR effective range up to 50 meters for night surveillance
l WDR to increase image recognizability in overexposure and dark areas
l Remote Surveillance -- Fully compatible with iOS and Android devices, and Internet Explorer on Windows
operating system
-- Free PC program, CMS Lite, for 32CH devices monitoring on Windows operating system
.
œ DIMENSIONS
 Dimensional tolerance: ± 5mm
œ SPECIFICATIONS
▓ Network
LAN Port YES
LAN Speed 10/100 Based-T Ethernet
Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP,
RTCP,IPv4/IPv6, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP
ONVIF Compatible YES (Profile S)
Number of Online Users 10
Security
(1) Multiple user access levels with password
(2) IP address filtering
(3) Digest authentication
Remote Access
(1) Internet Explorer on Windows operating system
(2) CMS Lite, 32CH CMS software for Windows operating system
(3) EagleEyes on iOS & Android mobile devices
▓ Video
Network Compression H.264 / MJPEG
Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate 30/25 IPS
Multiple Video Streaming 4 (H.264 / MJPEG)
▓ General
Image Sensor 1/2.8" SONY CMOS image sensor
Min Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)
S/N Ratio More than 48dB (AGC off)
Lens motorized f2.8 ~ f8.0mm / F1.6 ~ F2.8 (Auto Focus)
Viewing Angle Wide: 102° (Horizontal) / 54° (Vertical) / 122° (Diagonal)
Tele: 55° (Horizontal) / 30° (Vertical) / 62° (Diagonal)
IR LED 4 units
IR Effective Distance Up to 50 meters
IR Shift YES
Smart Light Control YES
White Balance ATW
AGC Auto
IRIS Mode AES
WDR YES (120dB)
POE YES (IEEE 802.3af)
RAM 20MB
IP Rating IP66
Startup Temperature 0℃ ~ 50℃
Operating Temperature -25℃ ~ 50℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 1A
Current Consumption (±10%) 225mA (IR LED OFF); 544mA (IR LED ON)
Power Consumption (±10%) 8W (PoE / PoN) ; 6.5W (DC Adapter)
Net Weight (kg) 0.75
.*The specifications are subject to change without notice. .
œ SPECIFICATIONS (CONTINUED)
▓ Audio
Line--in YES
Line-out YES
▓ Others
EaZy Networking YES
Mobile Surveillance iOS & Android mobile devices
Event Notification FTP / Email / SMS
Digital Pan / Tilt / Zoom YES
Motion Detection YES
RTC (real-time clock) YES
Minimum Web Browsing Requirements
‧Intel core i3 or higher, or equivalent AMD
‧2GB RAM
‧AGP graphics card, Direct Draw, 32MB RAM
‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later
‧Internet Explorer 7.x or later (Windows Edge not supported)
.*The specifications are subject to change without notice.



(DEMO) DGM2543 - 2 megapixel - 2.8 - 8mm linse.
Demokamera som har stått på test hos oss. Bør oppgraderes før installasjon. .
l Equipped with a motorized vari-focal lensbof f2.8 ~ 8.0 mm, focal length and focus adjustment could be made remotely
l Free P2P Cloud EaZy Networking
-- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
-- The Buddy feature to share the device access permission to other people.
-- Device login / out notifications reported.
l ONVIF ( ) standard supported to simplify system integration
l POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
l Line in / out jacks available for audio transmission
l IR effective range up to 50 meters for night surveillance
l WDR to increase image recognizability in overexposure and dark areas
l Remote Surveillance -- Fully compatible with iOS and Android devices, and Internet Explorer on Windows
operating system
-- Free PC program, CMS Lite, for 32CH devices monitoring on Windows operating system
.
œ DIMENSIONS
 Dimensional tolerance: ± 5mm
œ SPECIFICATIONS
▓ Network
LAN Port YES
LAN Speed 10/100 Based-T Ethernet
Supported Protocols DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP,
RTCP,IPv4/IPv6, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP
ONVIF Compatible YES (Profile S)
Number of Online Users 10
Security
(1) Multiple user access levels with password
(2) IP address filtering
(3) Digest authentication
Remote Access
(1) Internet Explorer on Windows operating system
(2) CMS Lite, 32CH CMS software for Windows operating system
(3) EagleEyes on iOS & Android mobile devices
▓ Video
Network Compression H.264 / MJPEG
Video Resolution 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate 30/25 IPS
Multiple Video Streaming 4 (H.264 / MJPEG)
▓ General
Image Sensor 1/2.8" SONY CMOS image sensor
Min Illumination 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)
S/N Ratio More than 48dB (AGC off)
Lens motorized f2.8 ~ f8.0mm / F1.6 ~ F2.8 (Auto Focus)
Viewing Angle Wide: 102° (Horizontal) / 54° (Vertical) / 122° (Diagonal)
Tele: 55° (Horizontal) / 30° (Vertical) / 62° (Diagonal)
IR LED 4 units
IR Effective Distance Up to 50 meters
IR Shift YES
Smart Light Control YES
White Balance ATW
AGC Auto
IRIS Mode AES
WDR YES (120dB)
POE YES (IEEE 802.3af)
RAM 20MB
IP Rating IP66
Startup Temperature 0℃ ~ 50℃
Operating Temperature -25℃ ~ 50℃
Operating Humidity 90% or less relative humidity
Power Source (±10%) DC12V / 1A
Current Consumption (±10%) 225mA (IR LED OFF); 544mA (IR LED ON)
Power Consumption (±10%) 8W (PoE / PoN) ; 6.5W (DC Adapter)
Net Weight (kg) 0.75
.*The specifications are subject to change without notice. .
œ SPECIFICATIONS (CONTINUED)
▓ Audio
Line--in YES
Line-out YES
▓ Others
EaZy Networking YES
Mobile Surveillance iOS & Android mobile devices
Event Notification FTP / Email / SMS
Digital Pan / Tilt / Zoom YES
Motion Detection YES
RTC (real-time clock) YES
Minimum Web Browsing Requirements
‧Intel core i3 or higher, or equivalent AMD
‧2GB RAM
‧AGP graphics card, Direct Draw, 32MB RAM
‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later
‧Internet Explorer 7.x or later (Windows Edge not supported)
.*The specifications are subject to change without notice.
