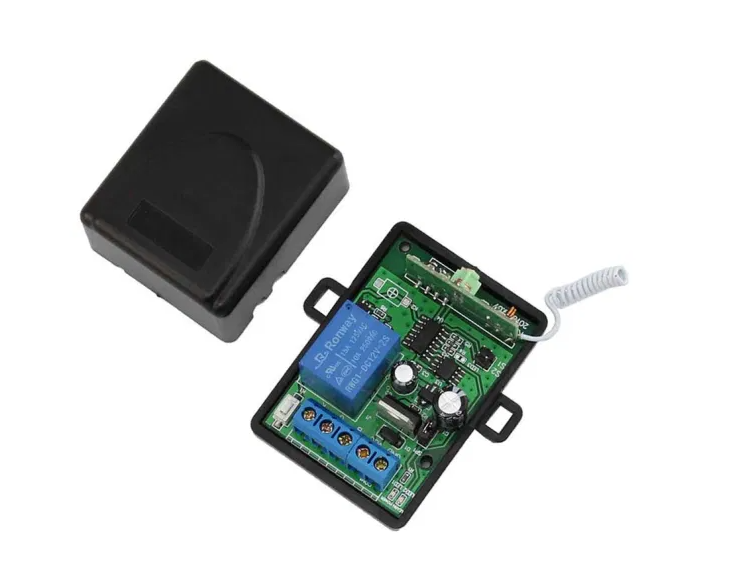

Relekort Trådløse røykvarslere,

Pris: 325,00 kr
Art. nr: 13542

Trådløs relekort for mottak av alarmer fra trådløse røykvarslere og varmedetektorer. Koples sammen med de trådløse røykvarslerne på samme måte som en av de.

Når alarmen blir utløst i en røykvarsler, så veksler releet i denne og kan trigge en inngang på en alarmsentral eller alarmsender.

Tech Data：

DC 12V 1-Channel Remote Control Switch AJ-K103

Input DC 12V
Channels 1
Working Current 8mA
Working Frequency 868MHz
Receiver Sensitivity -103dBm
Decoding Type Learning Code(EV1527) / Fixed Code(2262)
Output Mode Switching Signal (Dry Contact)
Working Mode Momentary / Toggle / Latching
Max Load of Relay Contact 7A
Dimension 44*37*20mm

Working Mode:

  1. Momentary: Press remote button A, and the corresponding relay on the receiver is on; release button A, and the relay is off, the same as others.
  2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
  3. Latching: Press remote button A, the relay A is on, and B is off. Press button B, the replay B is on, and A is off.



Wiring Way & Diagram:

B=Normally Closed, G=Common, K=Normally Open.
