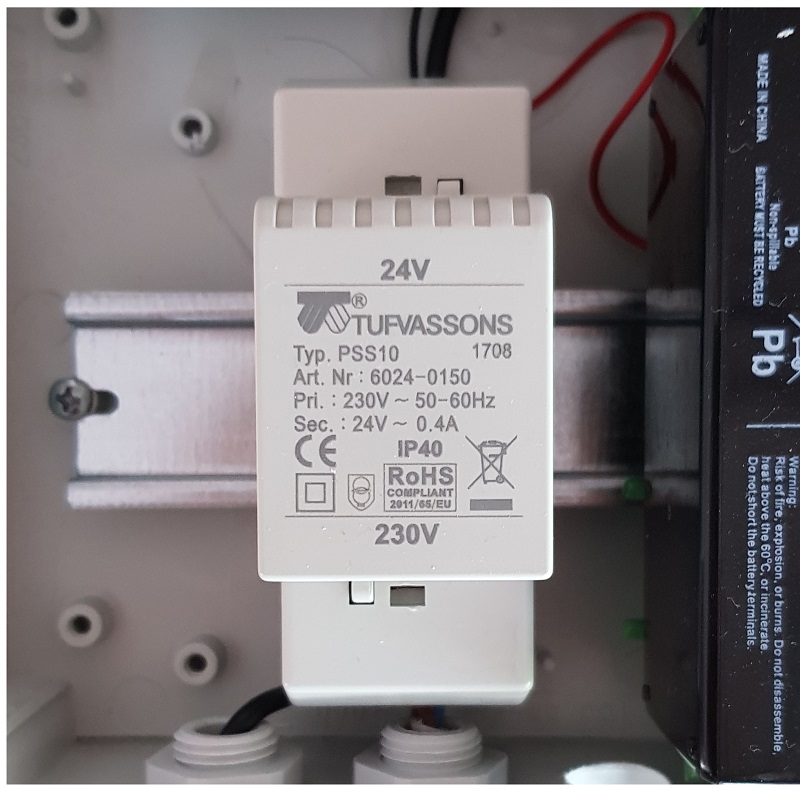

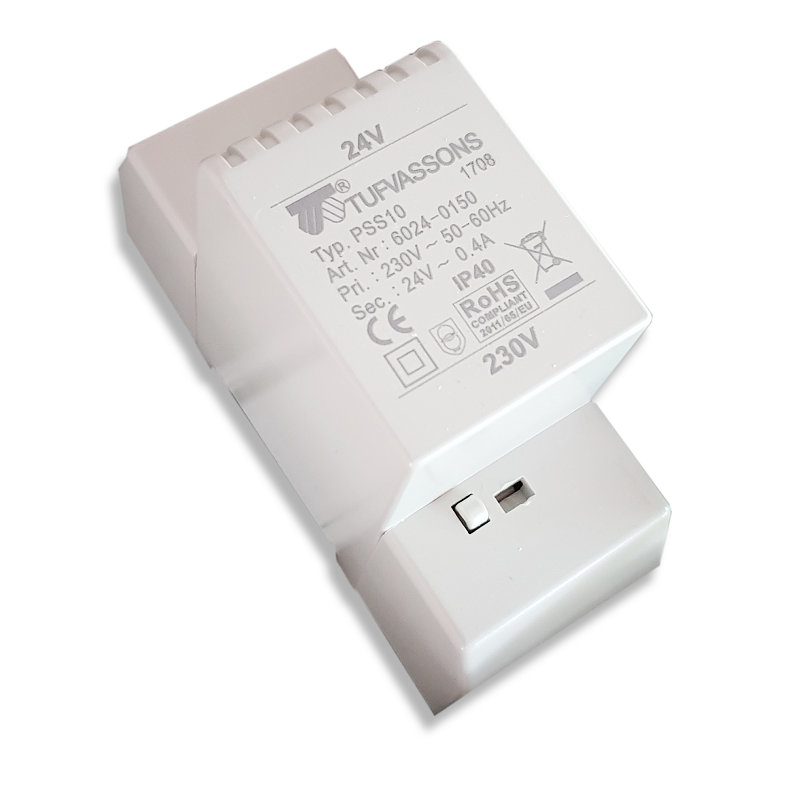

Strømforsyning, DIN-Skinne, 230 VAC --> 24VDC

Pris: 518,38 kr
Art. nr: 05068

Strømforsyning, DIN-Skinne, 230 VAC --> 24VDC

DIN skinne transformator/strømforsyning. 230VAC 50...60 Hz --> 24VDC. 10VA.

Data:

- Safety transformer for mounting on DIN-rail or wall (with screw)
- Dual-insulated design (class II), earthing not needed
- Integral PTC protection on the secondary side, resets when power is cut
- Enclosure of self-extinguishing thermoplastic
- Only for installation by a qualified electrician
- Manufacturing standard EN61558

Primary: 230 VAC, 50...60 Hz
Secondary voltage: 24 VDC
Power: 10 VA
Length: 66 mm
Width: 36.5 mm
Height: 93 mm
Depth: 66 mm
Protection rating: IP40
Weight: 320 g
Test voltage: 4.2 kV

Strømforsyning, DIN-Skinne, 230 VAC --> 24VDC

DIN skinne transformator/strømforsyning. 230VAC 50...60 Hz --> 24VDC. 10VA.

Data:

- Safety transformer for mounting on DIN-rail or wall (with screw)
- Dual-insulated design (class II), earthing not needed
- Integral PTC protection on the secondary side, resets when power is cut
- Enclosure of self-extinguishing thermoplastic
- Only for installation by a qualified electrician
- Manufacturing standard EN61558

Primary: 230 VAC, 50...60 Hz
Secondary voltage: 24 VDC
Power: 10 VA
Length: 66 mm
Width: 36.5 mm
Height: 93 mm
Depth: 66 mm
Protection rating: IP40
Weight: 320 g
Test voltage: 4.2 kV
