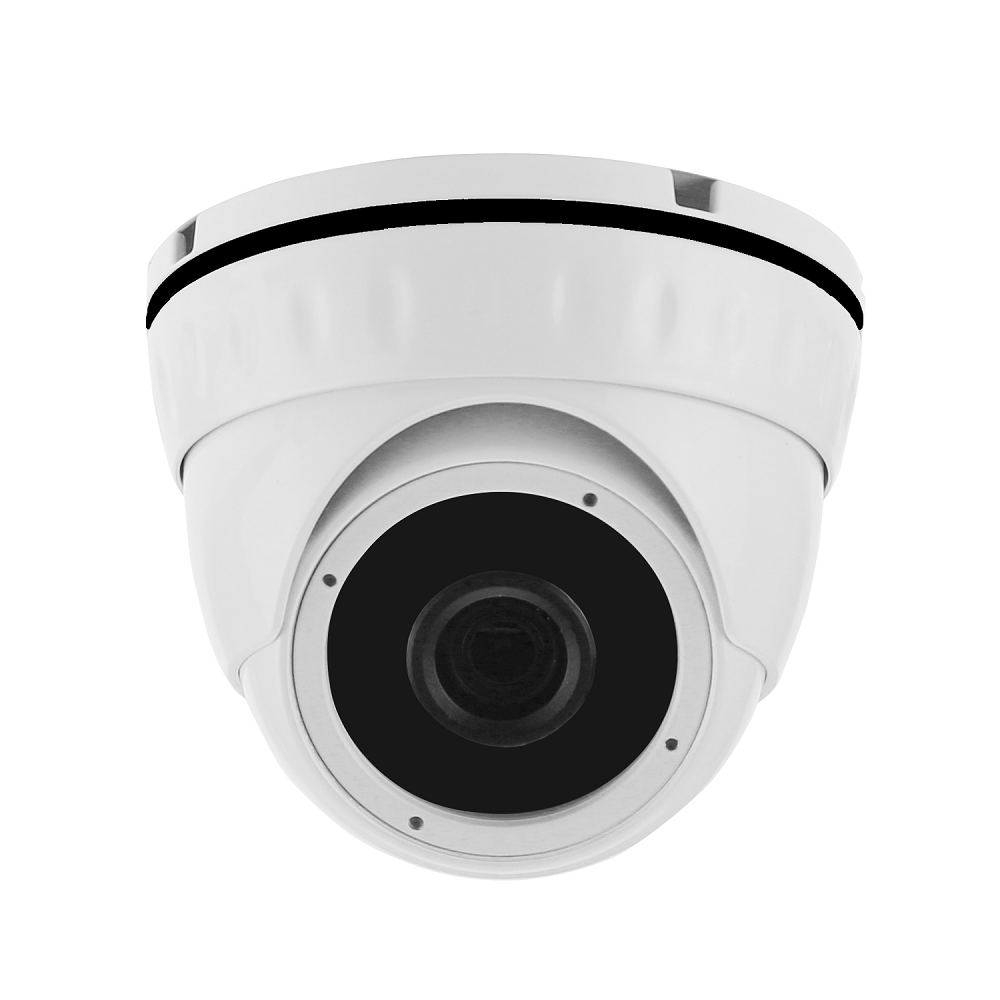

KD-673 - Analog kamera 700 TVL (20 meter IR)

Pris: 1 179,75 kr
Art. nr: 107646
På lager: Utgått produkt.

KD-673 - Analog kamera 700 TVL (20 meter IR)

Utgått produkt.

Analog kamera for eldre analoge system med 700 tvl. Brukes når du ikke vill bytte ett helt analogt system uten bare en kamera.

Data:

Model: KD-673
Image Sensor: 1/3" SONY Super HAD CCDII
Resolution: 700TV Line
Signal System: PAL/NTSC
Minimum Illumination: 0.001 Lux/F1.2
S/N Ratio: More than 52dB
Synchronous System: Internal
IR Distance: 20 Meters
Functions: OSD menu, DWDR, DNR, Smart-IR,
IR Power On: Photodiode AUTO Control
Video Output: CVBS,1Vpp, 75Ω
Power/Current: DC12V(+/-10%)/550mA
Lens: Board Lens 3.6mm
Dimension Φ 94.5 x 76(H)
Weight: 450g
Operating Conditions -10~+50℃ RH95% MAX

KD-673 - Analog kamera 700 TVL (20 meter IR)

Utgått produkt.

Analog kamera for eldre analoge system med 700 tvl. Brukes når du ikke vill bytte ett helt analogt system uten bare en kamera.

Data:

Model: KD-673
Image Sensor: 1/3" SONY Super HAD CCDII
Resolution: 700TV Line
Signal System: PAL/NTSC
Minimum Illumination: 0.001 Lux/F1.2
S/N Ratio: More than 52dB
Synchronous System: Internal
IR Distance: 20 Meters
Functions: OSD menu, DWDR, DNR, Smart-IR,
IR Power On: Photodiode AUTO Control
Video Output: CVBS,1Vpp, 75Ω
Power/Current: DC12V(+/-10%)/550mA
Lens: Board Lens 3.6mm
Dimension Φ 94.5 x 76(H)
Weight: 450g
Operating Conditions -10~+50℃ RH95% MAX
